商品属性
产地
深圳
是否进口
否
订货号
A
加工定制
是
货号
A
类型
汽车故障检测仪
电源电压
12（V）
工作温度
-20-40（℃）
尺寸
26X20X8 CM 1.2 KG（mm）
品牌
HDS
型号
HDS
主要下游平台
ebay,亚马逊,wish,速卖通,独立站,LAZADA
主要销售地区
非洲,欧洲,南美,东南亚,北美,东北亚,中东
有可授权的自有品牌
否
是否跨境出口专供货源
是
尺寸 26X20X8 CM
重量 1.2 KG
V3.104.24 For Honda HDS Tool HIM Diagnostic Tool For Honda HDS Newest Version with Double Board USB1.1 To RS232 OBD2 Scanner
Top 6 Reasons To Get Honda HDS:
1. Software Version: 3.104.24 This Version No Need Activation
2. Support VIN Reader and IMMO.
3. Test Coverage: Dynamical, Body, Chassis, ABS, SRS, Antitheft, etc.
4. Honda HDS HIM supports CAN BUS system, and it can re-program the Auto ECU. This HIM is based on PC operation platform.

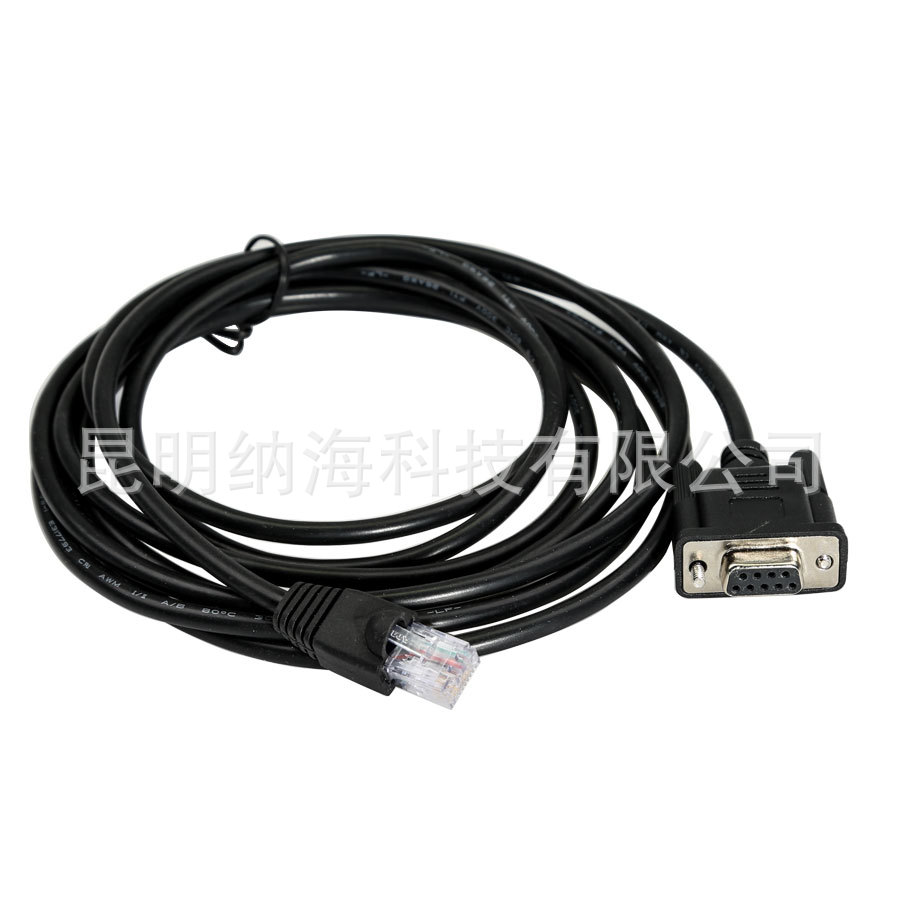

5. Use ZTEK USB1.1 to RS232 Convert Connector (GIFT) together, It is easy to use Honda HDS on the computer that without COM port
6. Support Honda vehicles from 1992-2021 year
7.Support Multi-languages:
Notice:
Operate System: Windows XP and Win7
1. Functions Supported by Honda/Acura Protocols
Reading and decoding fault codes from control blocks memory
Deleting fault codes
Displays system current parameters in digital form
Combined displaying of data
Management of executive devices
Logs keeping,writing and keeping of digital parameters in memory
Special functions changing of permissible settings of blocks, programming etc.
2. Functions Supported by OBD-II Protocols
Mode $01 Displays system current parameters in digital form (up to 8 parameters at once)
Mode $02 Displays parameters of freeze frame
Mode $03 Reading and decoding of fault codes from control block? memory
Mode $04 Deleting of fault codes (memory clearing)
Mode $05 Displays results of oxygen sensors
Mode $06 Displays results of changeably controlled systems and components
Mode $07 Displays results of constantly controlled systems and components
Mode $08 Management of executive devices
Mode $09 Displays car identification info
HDS HIM Package including:

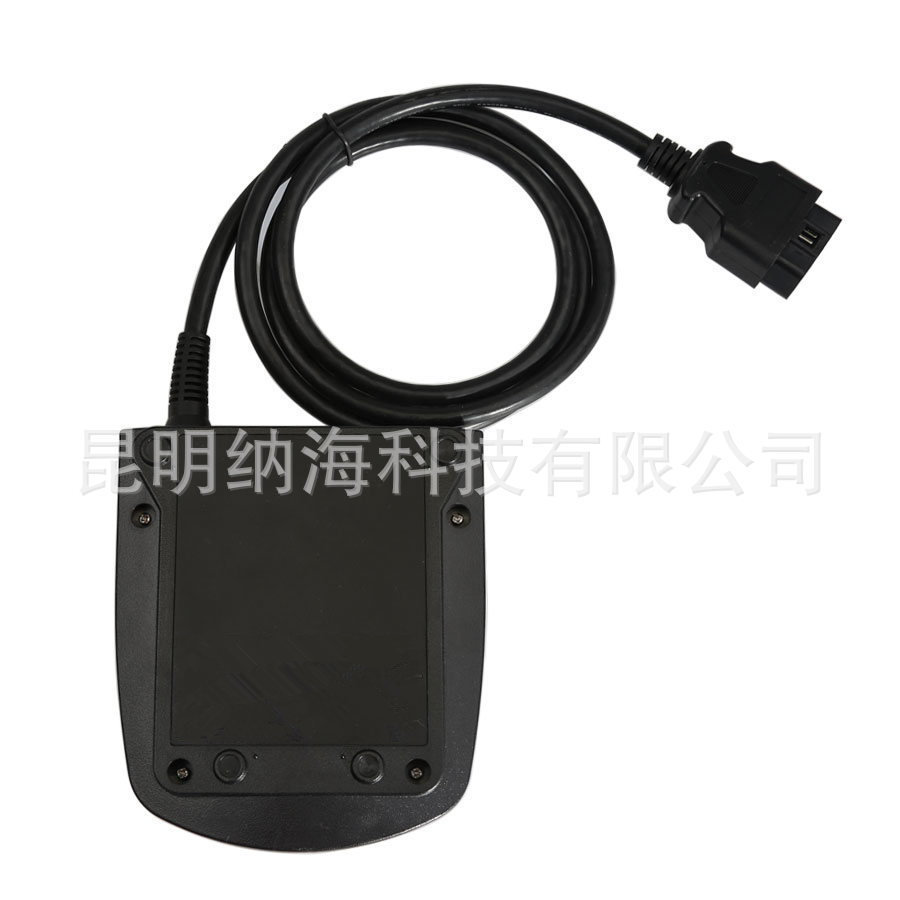

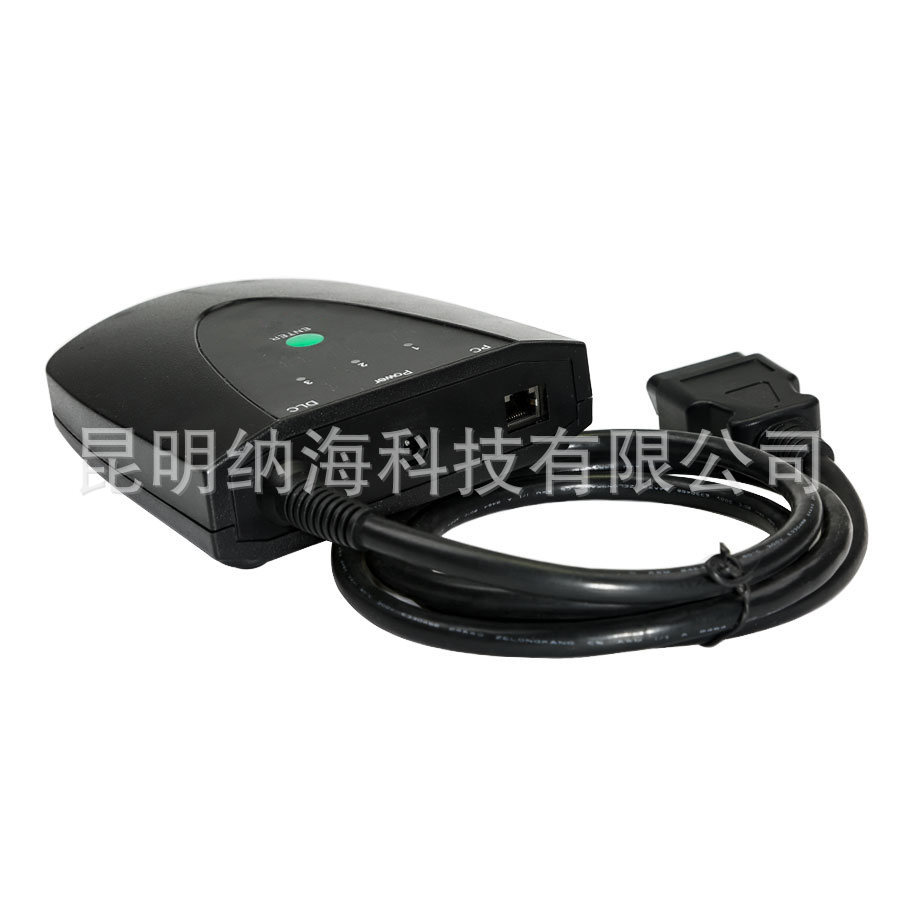

HIM with OBD II Cable

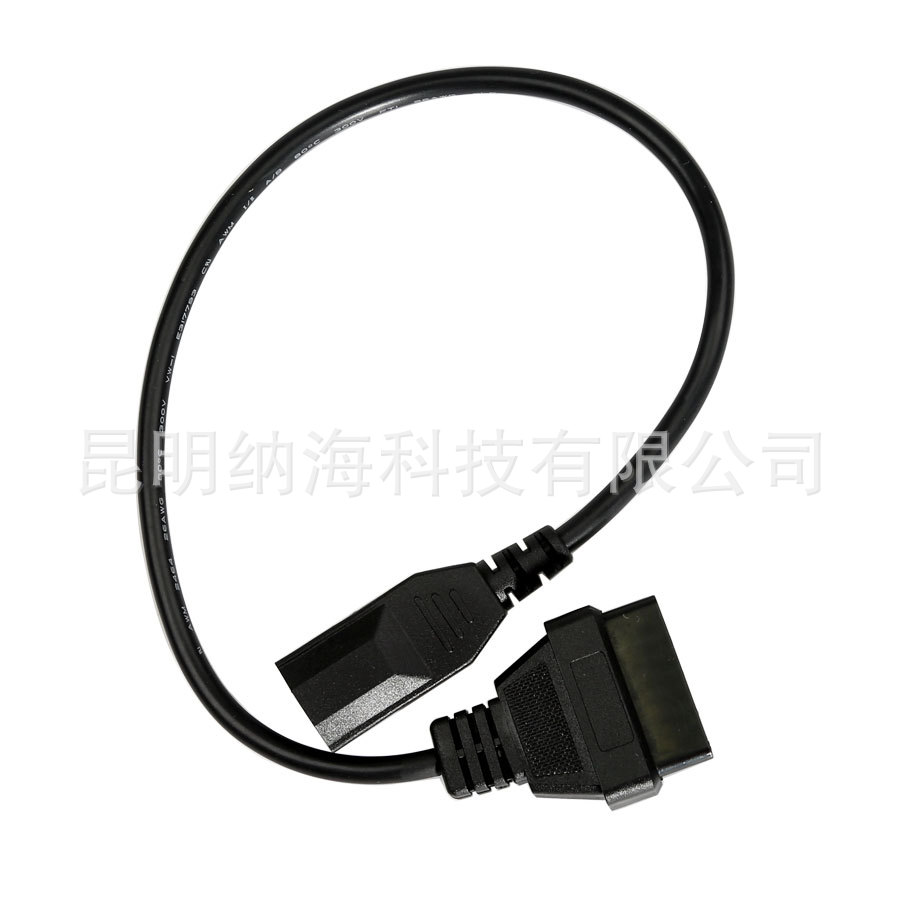

3 Pin Cable

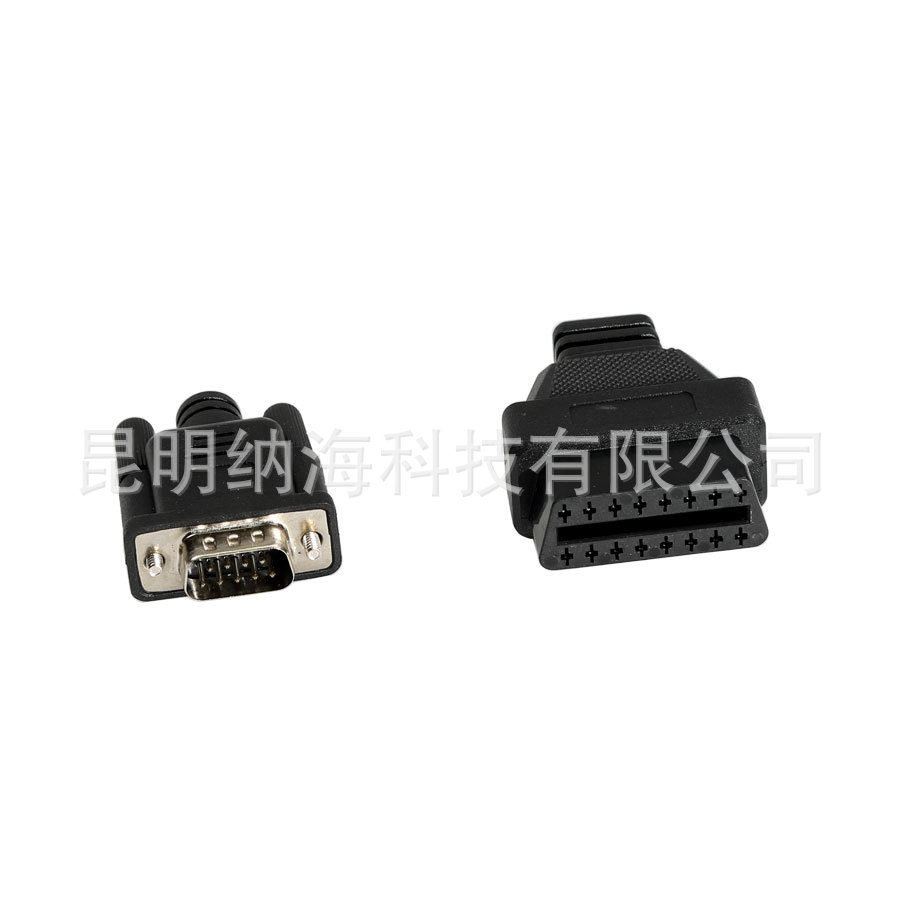

Self test Adapter

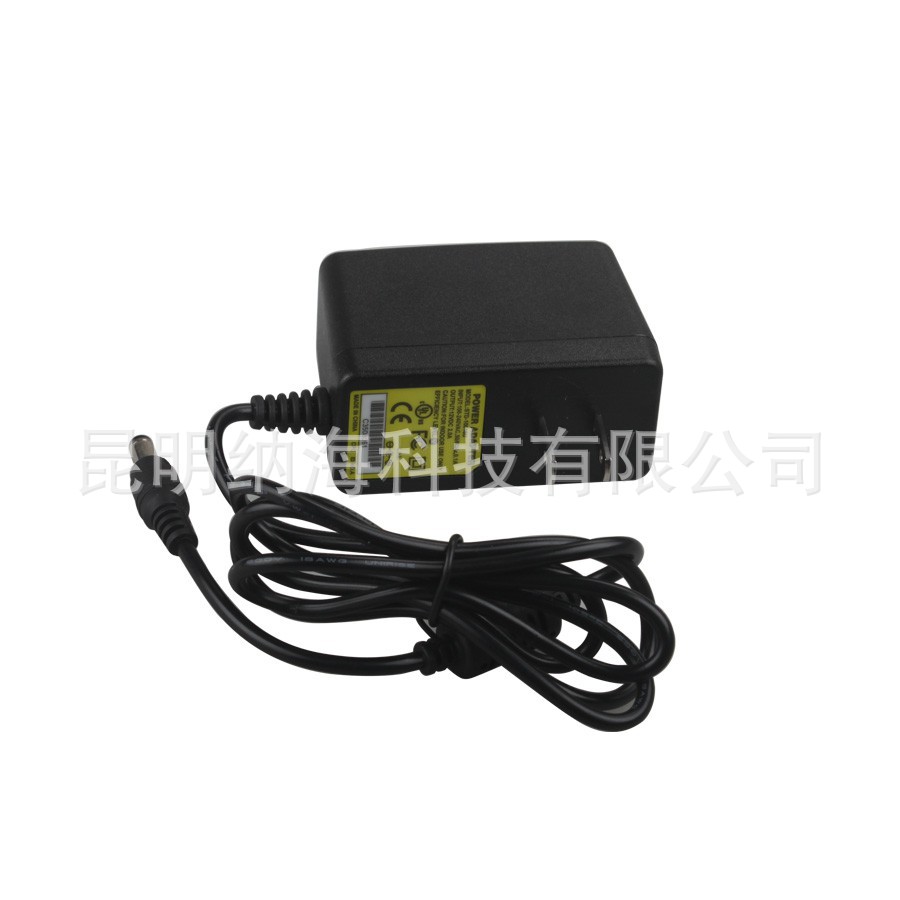

AC Adapter
